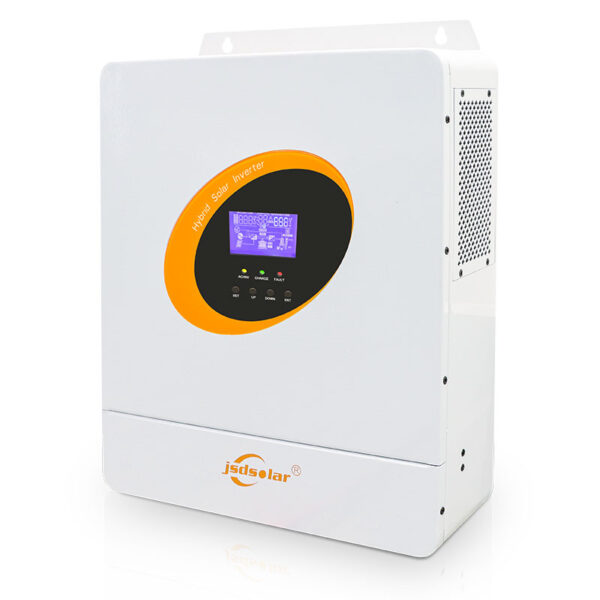

Solar inverter is a multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible owner support in protable size, its comprehesive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
- Pure sine wave MPPT solar inverter.
- Only Solar, Mains Priority, Solar Priority, and Mains & Solar hybrid charging.
- Advanced MPPT technology with an efficiency of 99.9%.
- With complete such as overload, short circuit, and over current.
- Lithium battery can be activated by both mains and PV.
Specifications:
| Model | J3000L-24 |
|---|---|
| ACĀ Ā Mode | |
| Rated input voltage | 220/230VAC |
| Input voltage range | (170~280VAC)Ā±2%(90-280VAC)Ā±2% |
| Frequency | 50Hz/60Hz(Auto detection) |
| Efficiency | >95% |
| InverterĀ Mode | |
| Rated output power (W) | 3000 |
| Rated output voltage (VAC) | 230VAC |
| Efficiency | >95% |
| Rated battery input voltage | 24V(Minimum starting voltage 22V) |
| ACĀ Charging | |
| Battery type | Lead acid or lithium battery |
| Maximum charge current | 80A |
| Charge voltage range | 20.0VDC~33VDC |
| PVĀ Charging | |
| Maximum PV open circuit voltage | 100VDC |
| MPPT voltage range | 30-85VDC |
| Battery voltage range | 20-33VDC |
| Rated Maximum PV Input Power | 1600W |
| PV charging current range | 0-6OA |
| CertifiedĀ Specifications | |
| Operating temperature range | -15Ā°ā to 55Ā°ā |
| Storage temperature range | -25ā~60ā |
| Humidity range | 5%to 95%(Conformal coating protection |
| Communication interface | USB |
| Size(L*W*D) | 385*312*103mm |
| Weight (KG) | 6.9 |
